Pilot Spray Dryer, Pharmaceutical Spray Dryer, Alumina Powder Spray Dryer, Spray Dryer with Fluid Bed Cooler Manufacturers in India

TECHPERT Process Industrieshas technical expertise in process and mechanical design of various spray dryers. We have design expertise in Alumina Spray Dryers, Chemical Spray Dryers, Pharmaceutical Spray Dryers, Fruit / Tomato powder Spray Dryers, Milk Powder Spray Dryers, Closed Loop Spray Dryers, Pilot Spray Dryers for testing and R&D purpose and Spray Dryers for other applications. Our Spray Dryers are ranging from 5 Kg/Hour to 5000 Kg/Hour water evaporation capacity.

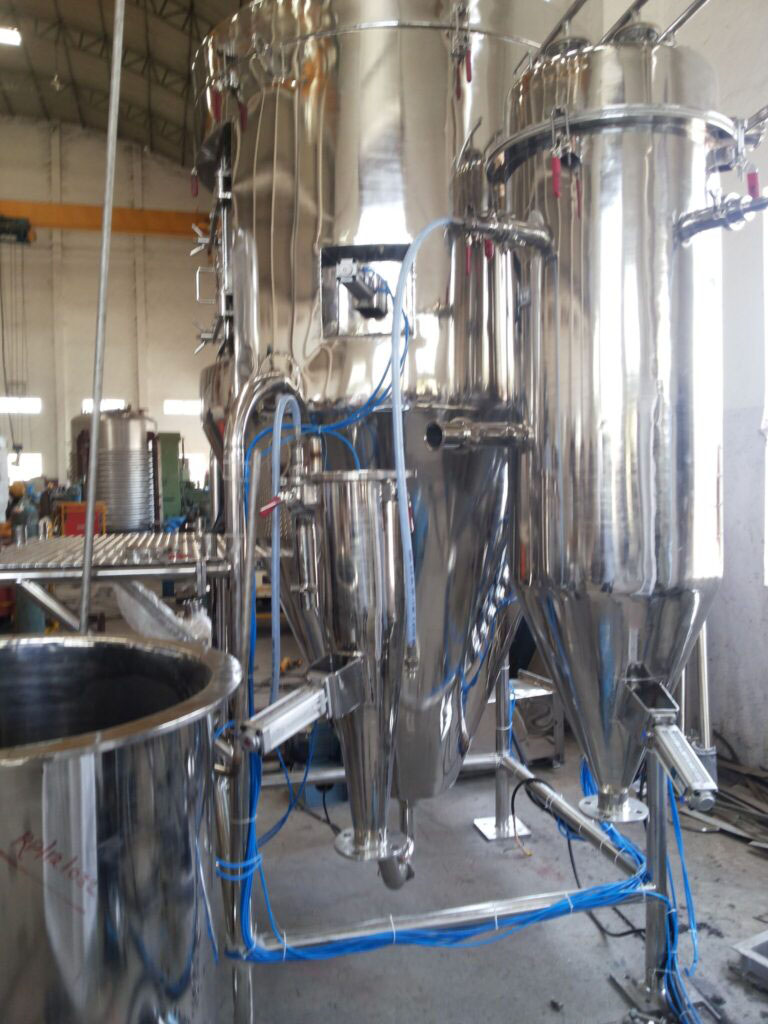

Spray drying is a method of producing a dry powder from a liquid or slurryby rapidly drying with a hot air. The feed is pumped to a nozzle/s or rotary atomizer at high pressure. The atomizer or nozzle atomizes the pumped liquid into very fine droplets of about 30 to 100 microns in size. At the same time hot air is passed through air distributor into drying chamber. This hot air comes in contact with the atomized feed particles and removes moisture. The dry powder drops down at bottom cone of chamber and is collected. Air leaves the drying chamber and is passed through cyclone and or bag filter / wet scrubber. Powder not trapped in chamber is collected at the outlet of cyclone separator. Very fine powder escaping cyclone is collected in Bag Filter or Wet Scrubber. Spray Dryers can be of co-current, counter current, tower or with Fluid Bed Cooler type. Also the design of chamber varies according to products and operating temperatures. Spray Dryers are used in food processing, chemicals, ceramic and pharmaceutical sectors. If product is oxygen sensitive or solvent being evaporated is flammable, then Closed Loop Spray Dryer with nitrogen gas is used.

We have test facility at our works. If anyone wants to try our products, one can inquire about the charges.
