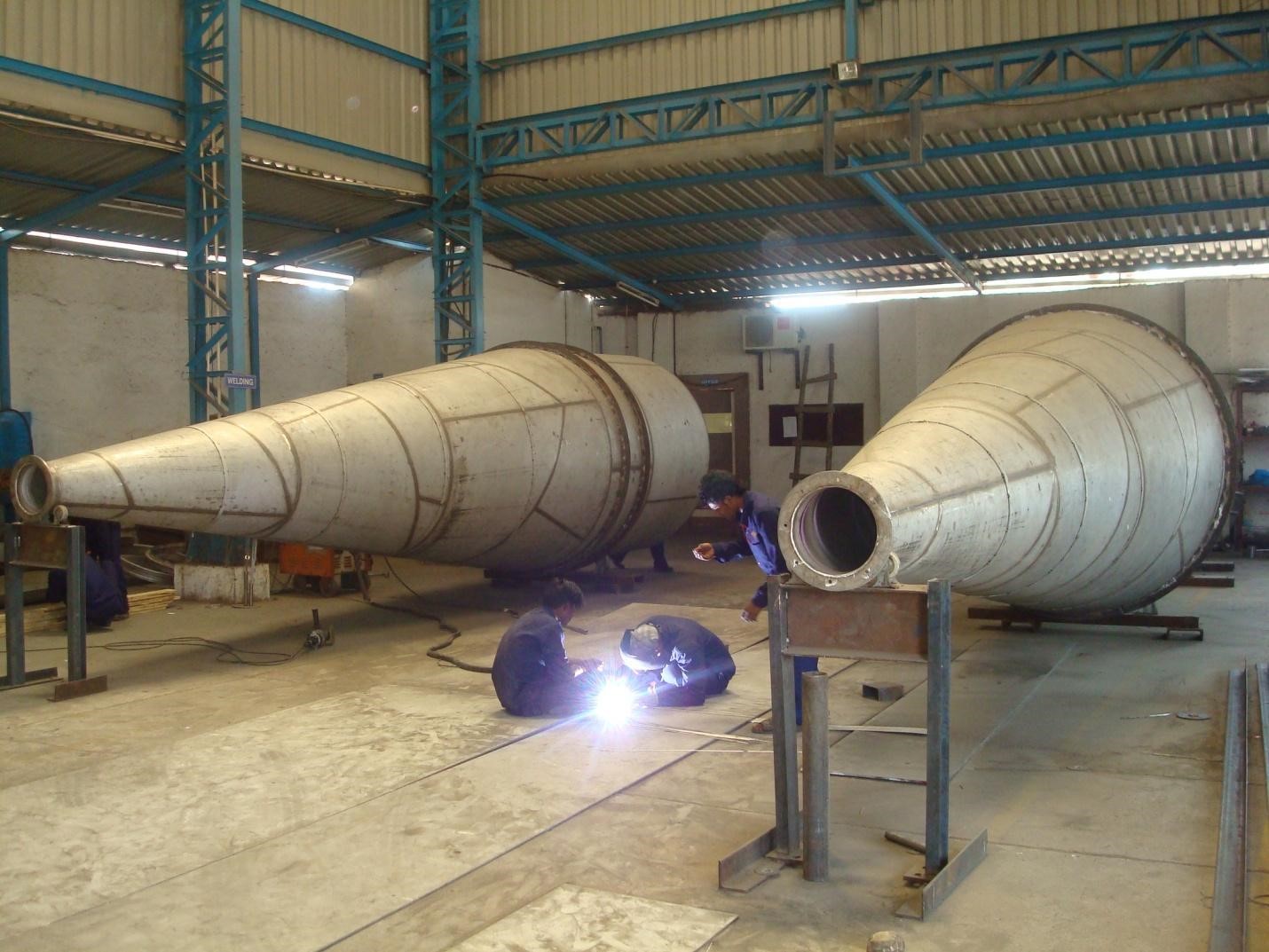

TECHPERT Process Industrieshas technical expertise in process and mechanical design of Cyclone Separator. We have design expertise in Cyclone Separator for specific customer applications to achieve pollution control norms. Our Cyclone Separator are ranging from 500 M3/Hour to 500000 M3/Hour capacity.Higher capacity cyclones are designed in Duo/Triple or Quadruple construction.

Essentially the function of a cyclone separator is to remove the majority of the dust and debris from the air stream that carries it. It does this by introducing the dust filled air to the cyclone chamber via an inlet mounted tangentially to the cylinder at the top. This causes the air and dust to circulate around the periphery of the container, and as such centrifugal forces keeps the particulate matter to the outside edges. The cyclone profile forces the air stream and dust particles down into the conical shaped container where the cone shape creates a cyclone with higher centrifugal air speed. This higher air speeds in the cone will throw the dust particles, both large and small, off to the side and the clean air is vented out.
