Rotary Dryer Manufacturers in Pune, India.

TECHPERT Process Industrieshas technical expertise in process and mechanical design of various rotary dryers. We have design expertise in Sand Rotary Dryers, Casting Sand Rotary Dryers, Bagasse Rotary Dryers, Vegetable RotaryDryers, Effluent Mud RotaryDryers, Pilot Rotary Dryers for testing and R&D purpose and Rotary Dryers for other applications. Our Rotary Dryers are ranging from 500 Kg/Hour to 5000 Kg/Hour water evaporation capacity.

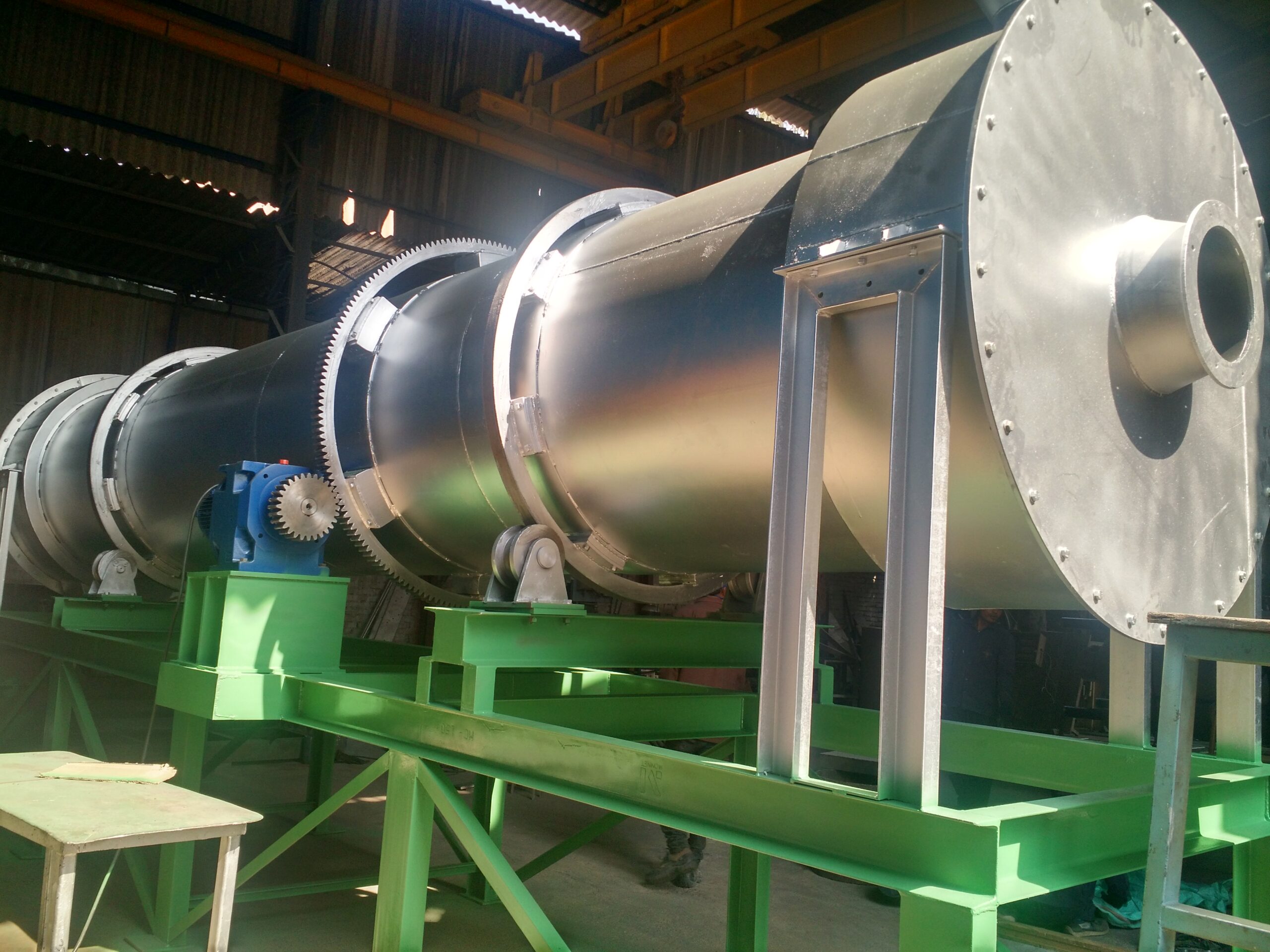

The rotary dryer is a long rotating cylindrical tube, with gear and pinion & rollers supported by robust steel frame. Inside the drum specially designed lifter and lump breakers are placed for proper drying of the feed product. The dryer has a slightly downward slope towards discharge end to facilitate conveying of feed material by gravity and rotation of drum. Material to be dried enters the dryer, and as the dryer rotates, the material is lifted up by a series of internal lifters present along the inner wall of the dryer. When the dryer rotates the material gets lifted up and as it is falling back down to the bottom of the dryer, it gets dried. Hot air passing through the dryer removes moisture from the material as it falls. The dryer can be co-current or counter current. The dryer can be direct fired or indirect fired using hot air generator. In some cases flue gas is also used, if it is available in required quantity and temperature.
